The Foundry

Horizontal Parting Line with Flask

• 600 X 500 X 200/200 mm - 1.5 Kg to 25 Kg
• 650 X 550 X 200/200 mm - 1.5 Kg to 25 Kg
• 750 X 650 X 250/250 mm - 10 Kg to 60 Kg

Horizontal Parting Line Flaskless

• 450 X 350 X 150/150 mm - 0.10 Kg to 3 Kg

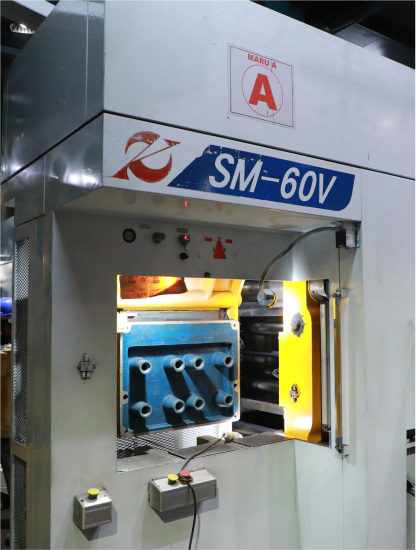

Vertical Parting Line Flaskless

•   620 X 500 X 180/330 mm - 0.50 Kg to 12 Kg

No Bake

•   Hand mould pouring castings from 25 Kg to a maximum of 1000 Kg

New State-of-the-art Lines,

• 1000 X 1100 X 350 / 350 - 10 Kg to 200 Kg
• 650 X 535 X 120 / 340 - 1 Kg to 15 Kg

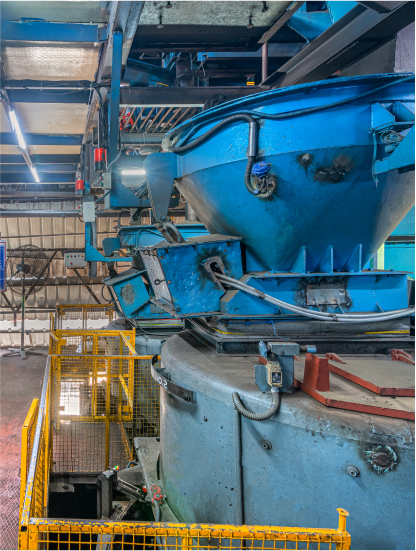

• Fully automated PLC-Controlled Sand Plant
• Automatic Sand Multi coolers
• Intensive Mixers with Automatic Compactibility Control
• Automatic Sand testing
• Dust Collectors.

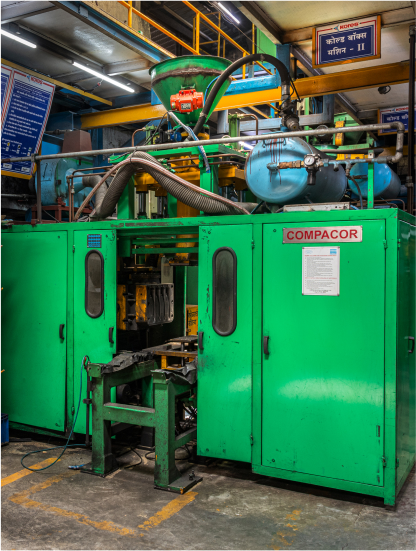

COLD BOX

• Cold Box machines with capacity ranging from 5 ltrs to 60 ltrs.

SHELL

• SHELL machines with capacity ranging from 4 ltrs to 7 ltrs.

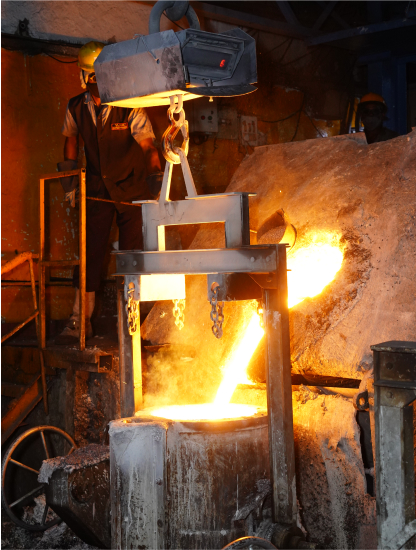

• Type of Furnace: IGBT Dual & Tri Trac - Induction Furnaces
• Frequency : Medium frequency
• No. Of Furnace: 18 nos
• Melting Capacity: 100 kg to 1500 kg

• Sandwich treatment with FeSiMg
• Cored Wired treatment

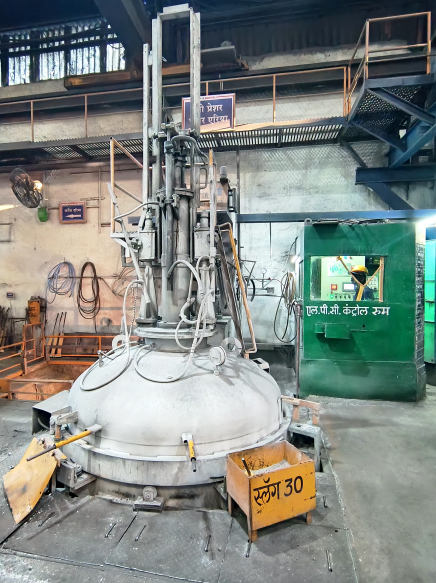

• Low pressure chamber with Pure Mg.

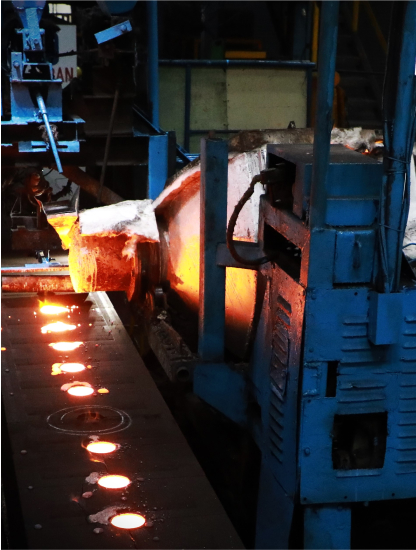

Auto pouring with PLC controlled systems having features like:

• Item wise Recipe
• 3-Axis Movement
• Auto Stream Inoculation
• Online Temperature measurement for each box.

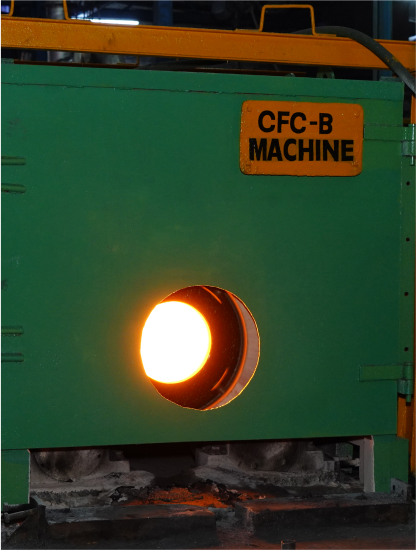

HORIZONTAL

• Capacity: 50 kg to 800 kg
• Size:
  • OD: Upto 550 mm
  • ID: Min 75mm

VERTICAL

• Capacity: 1 kg to 2 kg
• Size:
  • OD: Upto 60 mm
  • ID: Min 25 mm
